High-Heat-Resistant Substrate-Free Double-Sided Tape -5503HT/5505HR
Substrate-free, low-VOC heat-resistant tape that retains its performance even at 180°C
By means of proprietary precision polymerization technology, these tapes can maintain strong adhesion even at a thinness of 30 μm or 50 μm under high-temperature conditions, and they adhere well to rough surfaces.
With a low-VOC design, they are suitable for applications that require both heat resistance and environmental performance. They are widely used for fixing automotive electronic parts as well as in housing equipment and industrial fields.
With a low-VOC design, they are suitable for applications that require both heat resistance and environmental performance. They are widely used for fixing automotive electronic parts as well as in housing equipment and industrial fields.
- Mobility
- Building / Infrastructure
- Thermal durability of the product fixing around a heat source.
- Excellent high heat resistance tape with low VOC
- Technology information
- Document download
Thermal durability of the product fixing around a heat source.
As the size and weight of automotive electronic components are becoming increasingly compact and lightweight to achieve lower fuel consumption and EVs in automobiles, the heat generation density of the components themselves is increasing, creating a need for higher heat resistance in the adhesive tapes that hold them in place.
Excellent high heat resistance tape with low VOC
High heat-resistant tapes are for attaching automobile interior components, featuring high heat resistance up to 180°C and reduced VOC (reduced odor) with our proprietary compounding technology.
This adhesive maintains some level of softness at room temperature, while keeping the firmness when exposed to high temperatures, making it ideal for attaching materials related to electronic components, which will be increasingly in demand for electric vehicles (EVs) going forward.
Besides, silicone adhesives are currently often used in high temperature areas and may contain 13 VOC substances. Our "High heat-resistant transfer tape 5503HT・5505HR" can be used as an alternative material.
Technology information
Technical overview
High heat resistance up to 180°C
by our proprietary technology
Retains adhesiveness at high temperatures
with our proprietary precision blending technology

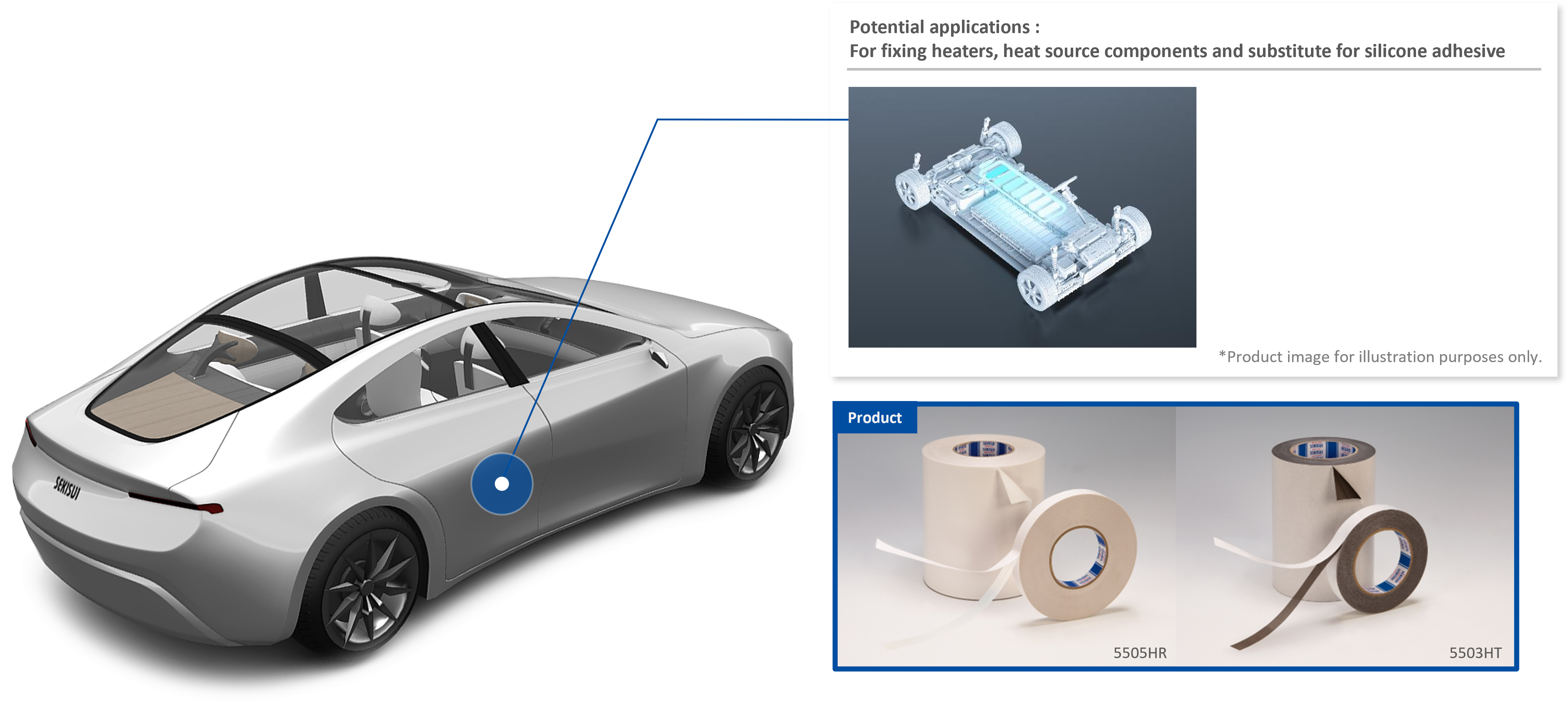

Can be used on high heat parts such as heaters.
Low-VOC has less impact for
environment and humans
Low VOC (odor)
for a comfortable interior
been significantly reduced to one-fifth
of conventional products.
Heat-resistant enough not to cause misalignment even at 180°C
Normally, thinner adhesion lowers adhesion, but our proprietary technology has achieved both adhesion to rough surfaces and high heat resistance at a thinness of 30 μm.
We expect that this product will be used in future EV models.
Adhesion to rough surfaces
under high temperature
It adheres to fabrics and foams, which are generally difficult to adhere to due to their uneven surfaces, and retains its adhesive strength even under high temperatures.
Technical details
Heat resistance up to 180°C by our proprietary technology
5505HR(50μm)
5503HT(30μm)
Precision polymerization technology
Proprietary polymerization method improves tape performance throughout the polymer
The application of a proprietary polymerization method makes it retaining hardness even at high temperatures
Hard to peel off
*The compounding method of our proprietary technology is used only for “5503HT.” Low-VOC has less impact for environment and humans
The total VOC content is superior to that of competitors' products.
This tape is easy to use for a comfortable Interior
This tape is easy to use for a comfortable Interior
Total VOCs[VDA Standard]
Heat-resistant enough not to cause misalignment even at 180℃
Holding power
*The above data are measured values, not guaranteed ones.
Adhesion to rough surfaces under high temperature
PU foam shear test (by thickness)
→Attach to rough surfaces under high temperature
Features
This heat-resistant transfer tape has both heat resistance up to 180°C and low VOC (low odor) due to our own formulation technology, does not become excessively hard at room temperature, and retains its hardness at high temperature.
- Heat resistance： Equipped with heat resistance to up to 180°C due to our own technology.
- Low VOC design： Eco/human-friendly low-VOC design with its VOC amount significantly decreased to approx. one-fifth of conventional product
- Strong adhesion： Exhibits strong adhesion even on rough surfaces such as cloth and foam material.
- Strong adhesion： Retains strong adhesion even with materials as thin as 30 μm and 50 μm and no base materials.
Lineup
We offer two types of tape for varying conditions including thickness, color, and heat resistance.
This product can be applied to various fields including residential construction and industrial fields.
Document download
- All
- Mobility
| Name | Type | File | Update | File |
|---|---|---|---|---|
| Catalog 〈Mobility〉：High heat-resistant tape 5505HR & 5503HT_SekisuiMobilitySolution | Mobility | 2023-09-11 | Download1.52 MB |
