THERMOBREAK
A globally recognized product featuring excellent insulation and workability. Easily cuttable and bendable thermal insulation material
Sustainablity
Building / Infrastructure●THERMOBREAK® is now widely used in various applications such as air ducts and plumbing pipes as a high-performance thermal insulation.
●Available in a variety of shapes
●Easy to cut and highly flexible
|
|
| THERMOBREAK sheet | THERMOBREAK tube |
THERMOBREAK® is an thermal-insulating material made from physically(irradiation)crosslinked polyolefin form. It was developed 30 years ago in Australia and is now widely used in various applications such as air ducts and plumbing pipes as a high-performance thermal insulation.
* THERMOBREAK®, which is a low GWP(Global Warming Potential) and allergy product does not use ozone destroying agents such as chlorofluorocarbons (CFCS) and hydro chlorofluorocarbons (HCFCS), PVC and formaldehyde, and meets the Green Star, RoHS, REACH and various fire-resistant standards
Features
It is produced using the Sekisui's unique electron beam cross-linking and forming technologies, which exhibits excellent insulation properties, low water absorption and low vapour permeability. And it meets various fire-retardant and smoke protection standards set by international institutions and organizations. It does not easily get scratched because of its surface with reinforced aluminum foil film on, and provides fast and simple installation because of its adhesive side laminated with a nonwoven fabric. It can be cut with a cutter and pressed easily.
 |
 |
| Easy to cut and highly flexible |
Product lineup
| THERMOBREAK Class 0 sheet & tube | The product that conforms to BS 476 Part6&7 Class 0 |

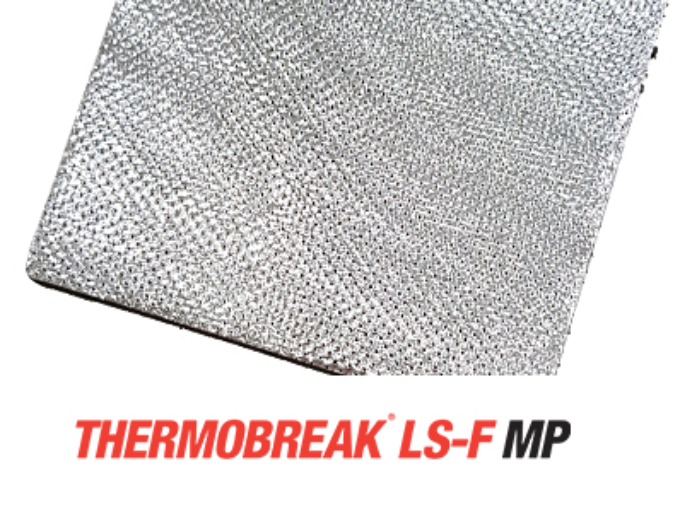

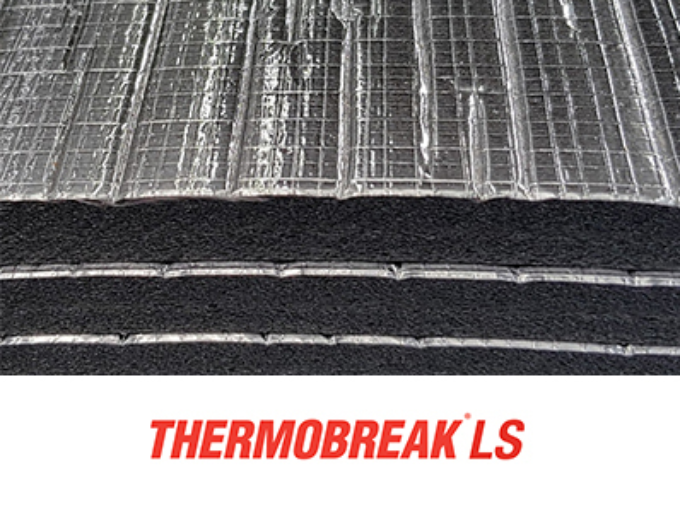

| THERMOBREAK LS sheet & LS-F tube | The product that conforms to FM approved, UL 723,Euroclass B S2,d0 |

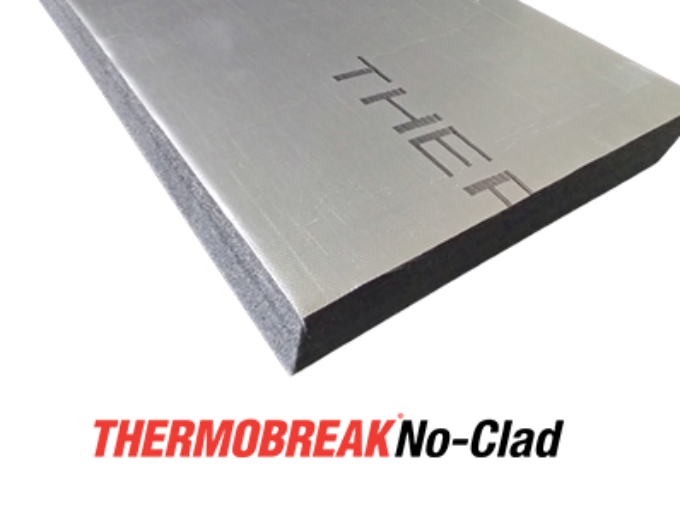

| THERMOBREAK No clad sheet & tube | Installable to exterior materials without racking |

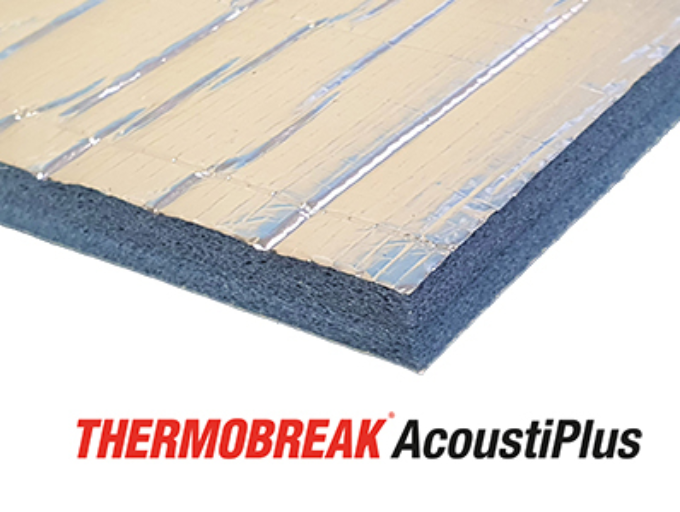

| THERMOBREAK acoustic plus | Sound-absorbing material used in air ducts |
 |
 |
 |
Purpose
THERMOBREAK® has been used in over 600 buildings all over the world for more than 30 years.and become a commonly used building material as foamed polyolefin insulation. In addition, its quality and reliability have been proven to be so high by the fact that it demonstrate a strong resistance to various types of climate in the world. The Sekisui Chemical Group has a global technical support system , which gives technical support in many countries and regions including Asia, the Pacific Rim, India, the Middle East and North America.
 |
 |
 |
 |
| SIDRA Hospital, Doha, Qatar | Vietin Bank Centre, Hanoi-Vietnam | Westin Hotel, Jakarta | WTC 3, Jakarta |
Specifications
Physical properties
| Material | Reinforced aluminum foil film + Electron beam crosslinked foam polyolefin foam + Acrylic adhesive |
| Density |
25 kg/m3（foam only） |
| Thermal conductivity（ASTM C518） |
0.032 W/m・K（23℃） 0.036 W/m・K（36℃） |
| Water vapor permeability（ASTM E96） |
2.3 x 10-15 kg/Pa.s.m（0.0084 mg.m/N.h） |
| Water vapor performance |
1.95 x 10-4 g/MN.s |
| Permeability resistance factor |
μ > 80,000 |
| Water absorption by volume（ASTM C1763 B, 24h） |
< 0.2% v/v |
| Resistance to fungi (ASTM G21) |
Zero growth |
| Leachable chlorides（ASTM C871） |
< 12ppm（ < 0.0012% w/w） |
| Ozone resistance |
Excellent |
| UV resistance |
Excellent |
| Green star rating |
Low VOC certification |
| Noise reduction coefficient (ISO 354) |
0.20(12mm foam thickness) 0.30(25mm foam thickness) |
| Operating temperature range |
−80℃～100℃(no adhesive) |
| REACH regulation |
Compliant |
Fire and smoke behaviour
| Measuring methods | Description | Result | Remarks |
| BS 476 Part 6 & 7 | Fire Propagation Surface Spread of Flame | Class 0 | |
| BS 6853 Annex B |
Smoke Toxicity |
Complies (R < 1.0) |
|
| ASTM E84 (UL 723) |
Flame Spread Index Smoke Development Index |
≦ 25 ≦ 50 |
THERMOBREAK LS ≦ 25mm Complies(NFPA 90 A&B) |
| ASMT C411 |
Hot Surface Performance | Complies NFPA 90 A and B | |
| ASTM E162 |
Surface Flammability | Complies NFPA 130 | |
| ASTM E662 |
Smoke Density | Complies NFPA 130 | |
| FM 4924 |
Flammability standard for pipe and duct insulation | FM Approved |
THERMOBREAK LS sheet only:≦ 25mm THERMOBREAK LS-F tube only:≦ 8" IPS (219mm) ID and ≦ Wall thickness 50mm |
| EN 13823 |
Single Burning Item | Euroclass B-S2, d0 Rating | THERMOBREAK LS sheet only |
| ISO 11925 Part 2 |
Ignitability | Euroclass B-S2, d0 Rating | THERMOBREAK LS sheet only |
| IMO MSC 61 (67) Part 2 | Smoke Toxicity | Complies | |
| ISO 5695 Part 2 |
Smoke Density Smoke Toxicity |
Complies IMO MSC 61 (67) Part 2Dm<200 Satisfies max allowable concentrations for the following combustion gases: CO,HCl, HBr. HF, HCN, NOx, SO2 |
|
| AS 1530 Part 3 |
Ignitability Index Spread of Flame Index Head Evolved Index Smoke Development Index |
0 0 0 0-1 |
|
| UL 94 |
Horizontal Burn | UL Approved to HF-1 |
