Thermal Grease CGW™ Series

A two-component high-performance thermal grease that combines flexibility with thermal conductivity

Two-component, room-temperature-curing thermal greases that offer excellent conformability to surface irregularities and strong adhesion, contributing to reduced contact thermal resistance. In addition to a design that suppresses low-molecular cyclic siloxanes, a wide range of grades are available with different thermal conductivities, hardness levels, and electromagnetic wave absorption properties. It can be stored at room temperature and are easy to handle.
  • Mobility
  • Electronics
製品特性 放熱
製品カテゴリー 安全(ADAS) 環境

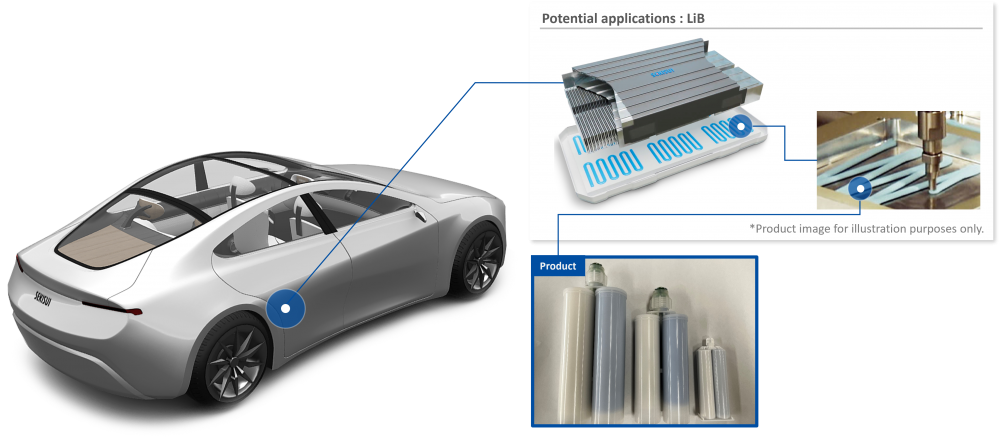

CGWシリーズ - 2液性室温硬化放熱グリス イメージ

Battery performance degradation due to high temperatures

It is said that temperature control of the battery is crucial to maintain battery
life span, safety, and performance stability in electric vehicles (EVs).
Repeated cycles of charging and discharging generate heat inside the cell
and in the connected system, which can cause degradation and fire.
Furthermore, trapped heat inside the battery pack or the imbalance in the
electricity due to temperature changes from module to module can affect
battery performance, therefore, it is necessary to release the heat inside the
battery and maintain a suitable temperature.

高温によるバッテリー性能の劣化

2-Component
Room Temperature-Curable Thermal-Conductive Greases

The CGW series of thermal conductive greases is a two-component silicone-
based thermal conductive grease. They contain very little low-molecular-
weight siloxane and are low-volatile materials.
They are low-specific-gravity materials, contributing to the weight reduction of automobiles. They have been used in EV batteries in Europe, and are
recognized for their high reliability.

低シロキサンの室温硬化放熱グリス

Technical information

技術情報

Technical overview

01 Wide range of product line

2~6W/(m・K)   under development

Ideal for high-temperature high-voltage products.
幅広い ラインナップ

02 Lightweight

low specific gravity line up

Contributes to the automotive weight reduction initiative.
軽量

03 Low volatility

Less than 70ppm

Very low cyclic siloxane content.
低揮発

04 High reliability

Over 10 years of mass production

Achievements garnered from the European automotive market.
高い信頼性

Technical details

01 Characteristics

Specification Unit CGW-2 CGW-3 CGW-3LW CGW-3.6 CGW-4 CGW-4.5 CGW-6 CGW-EM
Thermal conductivity
(ASTM D 5470)*1
W/(m・K) 2 3 3 3.6 4 4.5 6 1.5
Thermal conductivity
(ASTM D 5470)*2
W/(m・K) 3 3.5 3.5 4.5 5 5.5 8 -
Hardness (Shore 00) - 50 55 55 40 50 55 50 50
Specific gravity - 2.0 2.8 2.2 2.9 3.0 3.2 3.4 3.5
Viscosity before mixing (A) Pa・S 240 260 300 260 270 250 300 *3 250
Viscosity before mixing (B) Pa・S 220 240 280 230 250 250 280 *3 250
Viscosity before mixing Pa・S 230 250 290 260 260 250 290 250
Dielectric Strength AC kV/mm ≧10 ≧10 ≧10 ≧10 ≧10 ≧10 ≧10 ≧10
UL index - V-0 V-0 V-0 V-0 V-0 V-0 V-0 V-0
Content of low molecular
cyclic siloxane(D4-D10)
ppm ≦70 ≦70 ≦70 ≦70 ≦70 ≦70 ≦70 ≦70

*Thermal conductivity *1: LW-9389 manufactured by Long Win Science & Technology Corporation;
*Thermal conductivity *2: T3STER DynTIM manufactured by SIEMENS
*The viscosity measurement method for the CGW-6 differs from other products; it is measured using a spiral viscometer at 5 rpm.
* Selected grades have been evaluated in accordance with ASTM E595 and exhibit low outgassing characteristics.

02 High reliability

CGW-2 CGW-3 CGW-3LW CGW-3.6 CGW-4 CGW-45 CGW-6 CGW-EM

Applications

Highly Demanding Automotive & EV Applications

Designed for electronic and electrical components in demanding automotive applications, including electric vehicles (EVs). Maintains stable thermal, electrical, and physical properties over time.

Electric Vehicle (EV) Battery Modules/Packs and Battery Management Systems (BMS):
Helps limit battery temperature fluctuations during charging and discharging by improving heat transfer. In high-voltage junction boxes, it conducts heat away from busbars and other components while providing electrical insulation.

Electronic Control Units (ECUs) & ADAS:
Conducts heat away from high-density automotive ECUs, powertrain control units, and ADAS camera and radar modules to the housings.

Inverters, Converters & On-Board Chargers (OBCs):
Conducts heat from high-voltage power electronic devices while maintaining electrical insulation under demanding operating conditions.

Aerospace & Advanced Electronics:
Suitable for aerospace and other high-reliability electronics applications that require low outgassing. ASTM E595 outgassing test data are available for selected grades.
