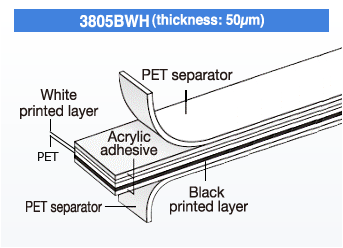

  • 高遮光高反射両面テープ 3800シリーズ（構造）
  • High Light-Shielding and High Reflective （Structure）
  • 高遮光高反射雙面膠帶 3800系列（結構）
  • 고차광/고반사 양면 테이프 3800 시리즈（구성）

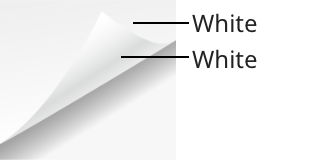

  • 高遮光高反射両面テープ 3800シリーズ（白白）

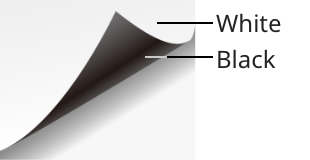

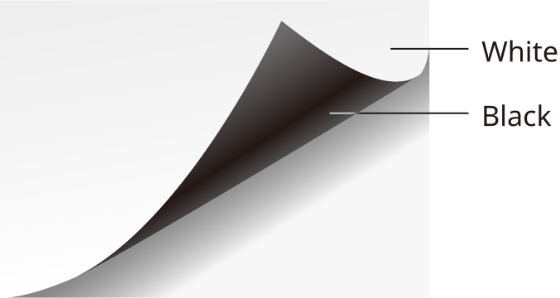

  • 高遮光高反射両面テープ 3800シリーズ（白黒）

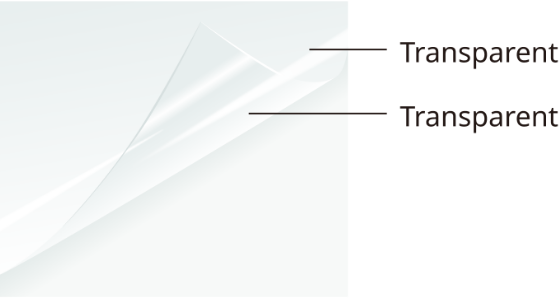

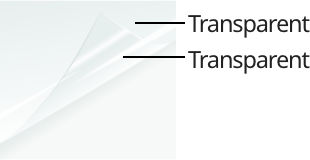

  • 高遮光高反射両面テープ 3800シリーズ（透明透明）
  • 高遮光高反射両面テープ 3800シリーズ（黒黒）

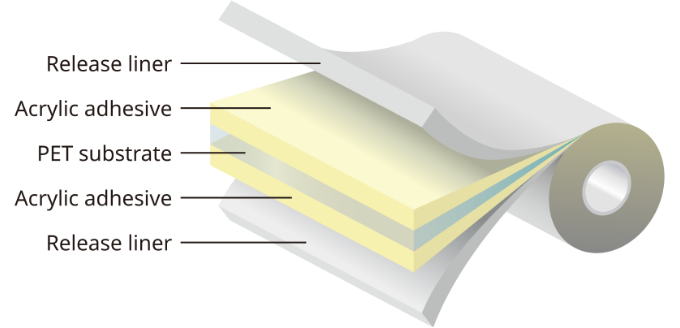

Double-faced adhesive tape 3800 series for fixing LCD components

Double-sided tape for fixing LCD parts

●Highly light-shielding and highly reflective (brightness up) backlight module and LCD module fixing tape using special black and white material.
●PET-based double-sided tape with high adhesion performance to various adherends.
  • Mobility
  • Electronics

Features

  • The special multi-layer print technology, the light shielding performance is significantly improved.

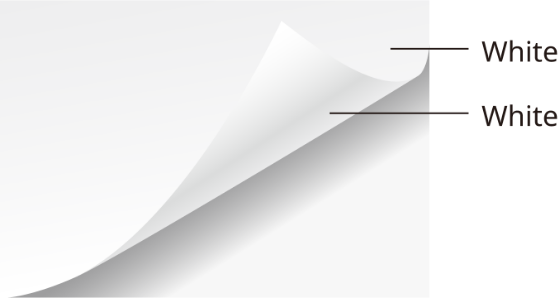

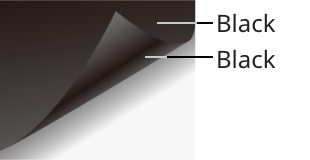

  • The light reflective design (black/white print on based material)improves contrast of LCD panel.

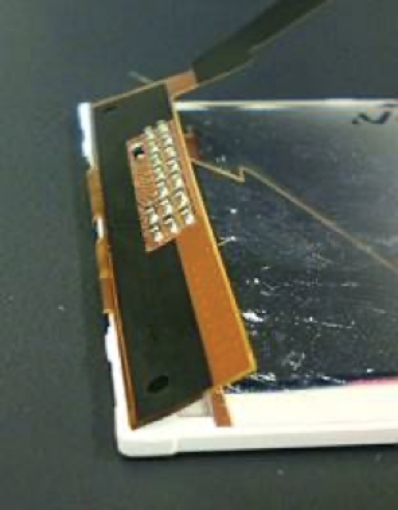

  • The die cutting will not damage the adhesive. It has excellent adhesive strength.
  • Tapes which can avoid short circuits are available in this series.

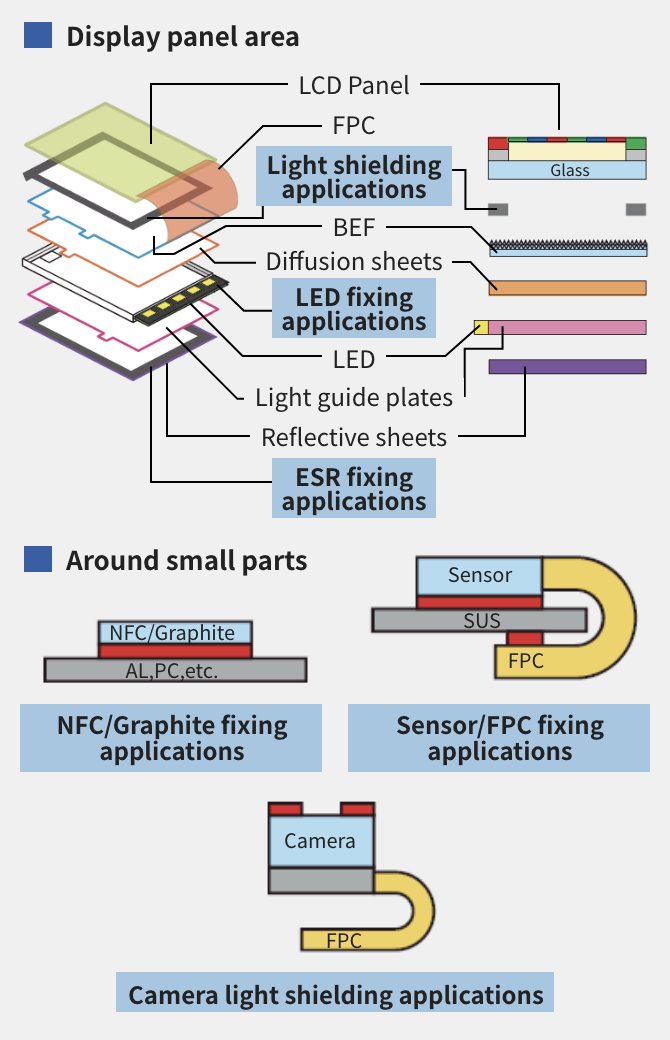

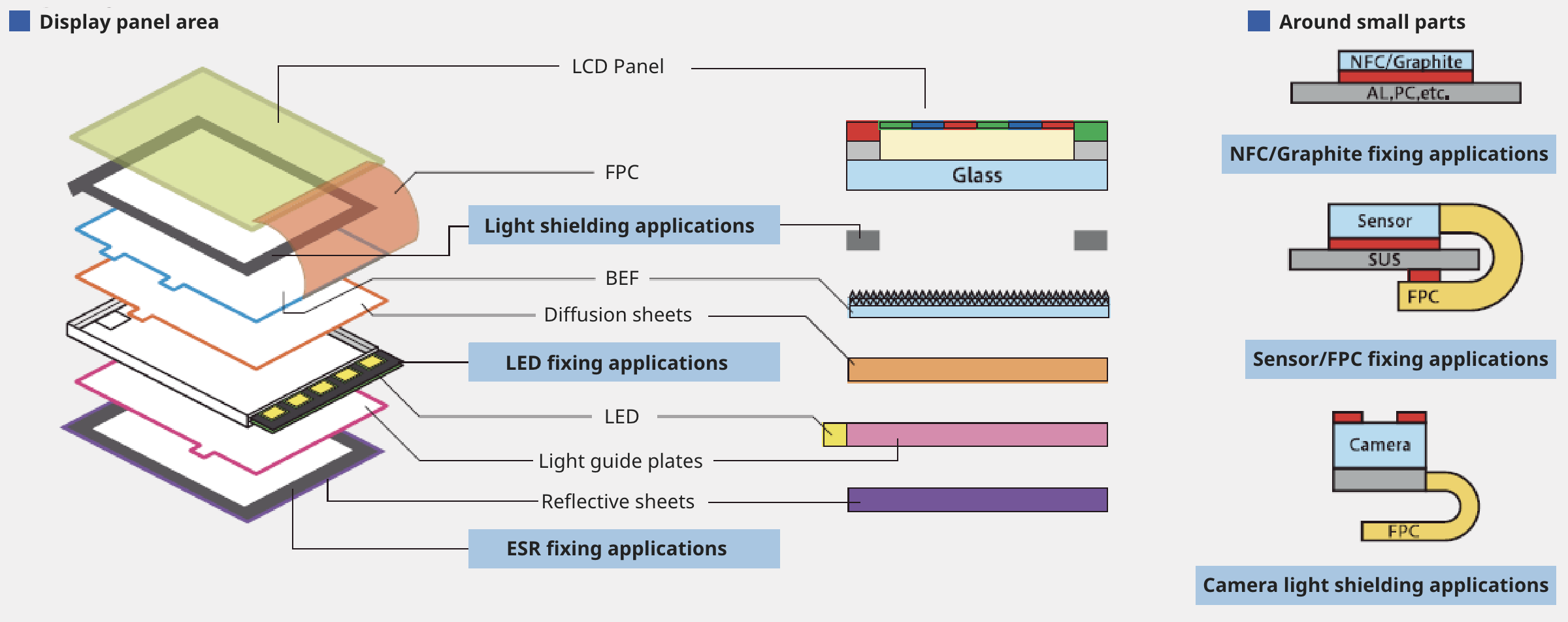

Applications

Features

  • The special multi-layer print technology, the light shielding performance is significantly improved.
  • The light reflective design (black/white print on based material)improves contrast of LCD panel.
  • The die cutting will not damage the adhesive. It has excellent adhesive strength.
  • Tapes which can avoid short circuits are available in this series.

Applications

Characteristics

General physical properties

Item Unit 3805BWH 3805BH Remarks
Adhesive strength (Substrate:PC plate) N/25mm 15.2 15.2 JIS Z 0237
Conforming to
Adhesive strength (Substrate:Glass plate) 13.8 14.3
Reliability test (Substrate:PC plate) 40℃ mm 0.0 0.0
80℃ mm 0.1 0.1
  • As the above figures are only measurements, the values cannot be guaranteed.

Others

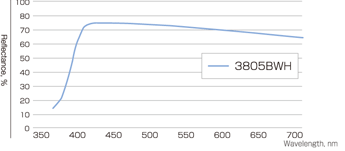

Reflectance of white surface in visible light region

可視光領域での白面反射率

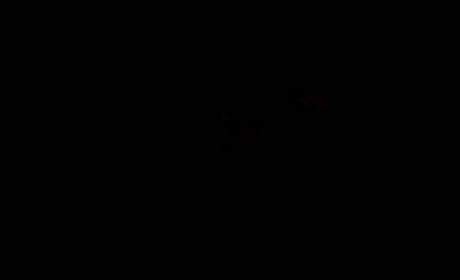

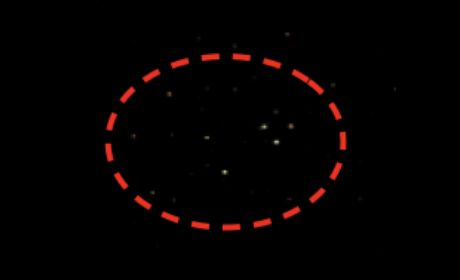

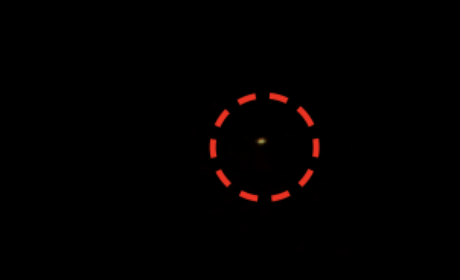

Evaluation of light shielding performance

Product Light leakage Light transmittance,%
Halogen 750 550nm
3805BWH No leak 0.00
3805BH No leak 0.00
  • As the above figures are only measurements, the values cannot be guaranteed.

3800 Series
Double-faced Tape for Attachment of LCD Components - Product Lineup

Application Grade Thickness, um
10～20 30～40 50～55 60～65 80～90 100 120 140～160 200～

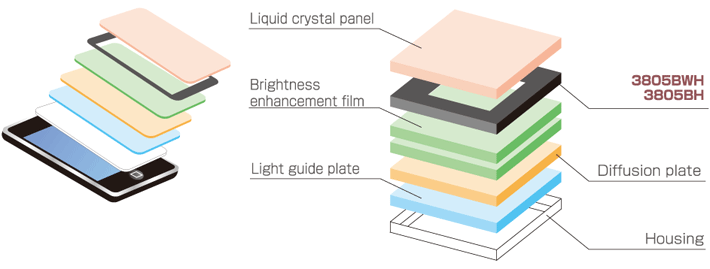

Backlight
module		 Reflection/
light
shielding		 Anti repulsion 3800BWH 3803BWH 3805BWH 3806BWH 3808BWH 3810BWH
Single-faced 3800BWS 3805BWS 3809BWS
Reworked 3800BWSH 3805BWSH
Light
shielding		 Anti repulsion 3800BH
3800BHB		 3803BH 3805BH
3805BHB		 3806BH
3806BHB		 3808BH
3808BHB		 3810BH 3812BH 3815BH 3820BH
Narrow frame 3800BZ 3802BZ
Single-faced 3800BS 3801BXS 3803BS 3805BS 3808BS 3810BS
Reworked 3800BSH 3805BSH 3806BSH 3808BSH
Bonding Transparent Stress relief 3800 3803 3805
Anti repulsion 3800H 3805H 3808H 3810H
Ultrathin 3800X 3801X
Reflection Anti repulsione 3800WH 3803WH 3805WH 3806WH 3808WH 3810WH
  • The above figures are only measurements; their values are not guaranteed.

Document download

  • All
  • TDS
  • Electronics
Name Type File Update File
Catalog 〈Electronics〉：High Light-Shielding and High Reflective Double-sided Tape 3800 Series Electronics pdf 2025-09-30 Download350.74 KB
TDS：High Light-Shielding and High Reflective Double-sided Tape 3800 Series TDS pdf 2025-09-30 Download76.13 KB
