Closed-cell form XLIM™/XLIM™-HR
Next-generation device foam that absorbs impact, even at a thickness of just 0.06 mm
A thin foam material designed for use in advanced devices such as smartphones. Featuring a closed-cell structure, it offers excellent shock absorption and flexibility, and is widely used as cushioning for speakers and camera modules, and as a spacer for LCD/OLED modules.
Features
XLIM™
- Superior shock absorption with closed cell foam
- High sealing performance and workability with a flexible and stiff material
- High chemical resistance of polyolefin resin
- Improved sound directionality with closed cell foam
- Maintaining the high basic performance of SOFTLON™
smartphone display
XLIM™-HR
- High heat resistance of polypropylene (PP) resin
- Minimum dimensional change at a temperature of 120°C
- Production available up to 0.1 mm thinness
- Achieves both moldability and workability
- Maintains high basic performance of SOFTLON™
Waterproofing/dustproofing gaskets
Applications
XLIM™

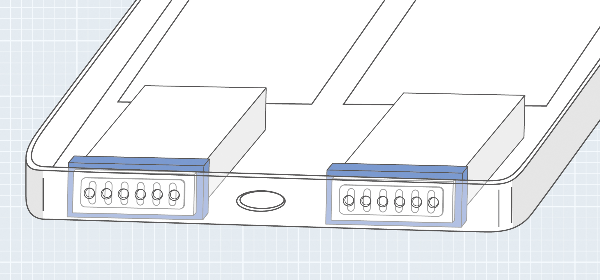

- Speaker module cushions

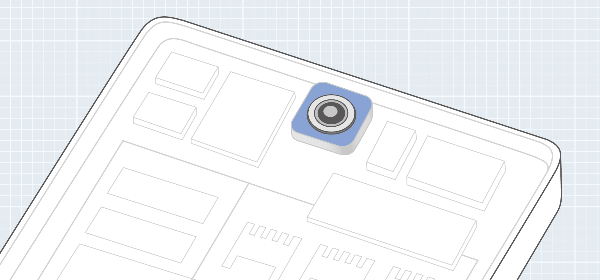

- Camera module cushions
- LCD/OLED module gaskets
- LCD/OLED module bottom spacers etc.
XLIM™-HR

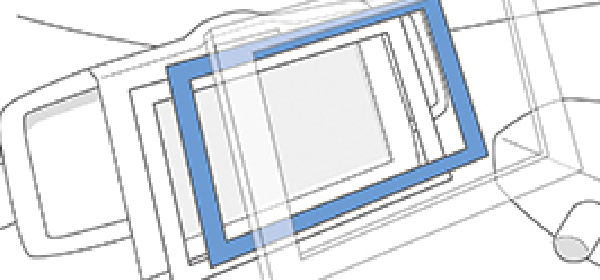

- Base material for fixing tape around in-vehicle displays(CID, HUD etc.) and waterproof/dustproof gaskets
- Protection and shock absorption around in-vehicle devices
- Processing materials under high temperature such as in the semiconductor manufacturing process
Product Information
【Sealing of uneven surfaces】With its flexibility, the foam seals uneven or sharp surfaces to achieve high sealing property.

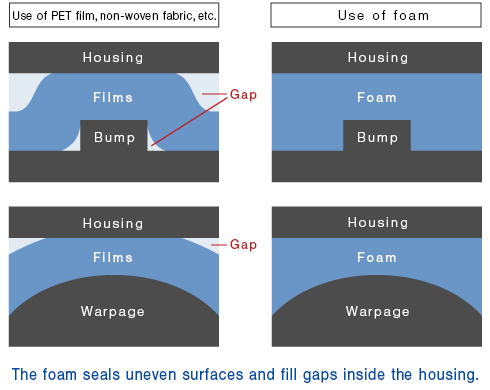

- Comparison of sealing property with other materials
A material with high sealing property
The sealing property of a sealer such as tape is greatly affected, not only by the properties of the material substance, but also by its close physical contact with the uneven surface of the adherend. A material with high flexibility eliminates gaps with the adherend and realizes high sealing performance.
Sealing property realized by foam
Resin films and fiber materials such as non-woven fabrics may leave small gaps because of their own rigidity (hardness). Sekisui foam is thin, but has excellent flexibility to seal uneven surfaces. It is used for various applications, including sealing (waterproof or dustproof) tape in electronic devices.
Click here for basic information on the SOFTLON™ series and a comparison with other foam materials.
What Are Sekisui Chemical’s Foam Materials?Product Lineup
XLIM™
| Product name | Thickness (mm) | Density (kg/m³) | Width (mm) | Length (m/roll) | Color |
|---|---|---|---|---|---|
| WF004 | 0.04 | 560 | 1020 | 300 | Black |
| WL004 | 0.04 | 330 | 1020 | 300 | Black |
| WF006 | 0.06 | 450 | 1020 | 300 | Black |
| WL006 | 0.06 | 330 | 1020 | 300 | Black |
| WF008 | 0.08 | 400 | 1020 | 300 | Black |
| WL008 | 0.08 | 280 | 1020 | 300 | Black |
| WF01 | 0.10 | 330 | 1020 | 300 | Black |
| WL01 | 0.10 | 200 | 1020 | 300 | Black |
| WF015 | 0.15 | 330 | 1020 | 300 | Black |
| WL015 | 0.15 | 200 | 1020 | 300 | Black |
| WL02 | 0.20 | 200 | 1020 | 300 | Black |
| WL03 | 0.30 | 130 | 1020 | 300 | Black |
| WL04 | 0.40 | 120 | 1020 | 300 | Black |
| WL05 | 0.50 | 100 | 1020 | 300 | Black |
| WL07 | 0.70 | 100 | 1020 | 300 | Black |
| WL10 | 1.00 | 67 | 1100 | 150 | Black |
| WL12 | 1.20 | 67 | 1100 | 150 | Black |
XLIM™-HR
| Product name | Thickness (mm) | Density (kg/m³) | Width (mm) | Length (m/roll) | Color |
|---|---|---|---|---|---|
| PL01 | 0.10 | 500 | 1020 | 300 | Black |
| PL02 | 0.20 | 400 | 1020 | 300 | Black |
| PL03 | 0.30 | 200 | 1020 | 300 | Black |
| PL05 | 0.50 | 125 | 1020 | 300 | Black |
| PL07 | 0.70 | 125 | 1020 | 300 | Black |
| PL10 | 1.00 | 77 | 1020 | 300 | Black |
For Overseas Inquiries
Our global supply network, with 8 manufacturing sites worldwide, supports customers across international markets. Please visit the link below and contact your nearest Sekisui Chemical Foam office.
View our global networkDocument download
- All
- Properties List
- SDS
- RoHS
- Electronics
| Name | Type | File | Update | File |
|---|---|---|---|---|
| RoHS：XLIM™ Test Report | RoHS | 2026-03-15 | Download835.82 KB | |
| RoHS：XLIM™ Directive Non-use Report | RoHS | 2026-03-15 | Download189.08 KB | |
| SDS： XLIM™ BK | SDS | 2026-03-15 | Download35.29 KB | |
| Properties list：XLIM™-HR | Properties List | 2026-03-15 | Download792.33 KB | |
| Properties list：XLIM™ | Properties List | 2026-03-15 | Download809.24 KB | |
| Catalog 〈Electronics〉：Closed-cell form XLIM™ | Electronics | 2025-09-30 | Download416.94 KB |
